Subsurface scanning of masonry and metal.
Somewhat different from hospital ultrasounds, our systems are optimized to look through construction materials instead of people.
Example Client: Materials Testing Inc.

How Ultrasound Works

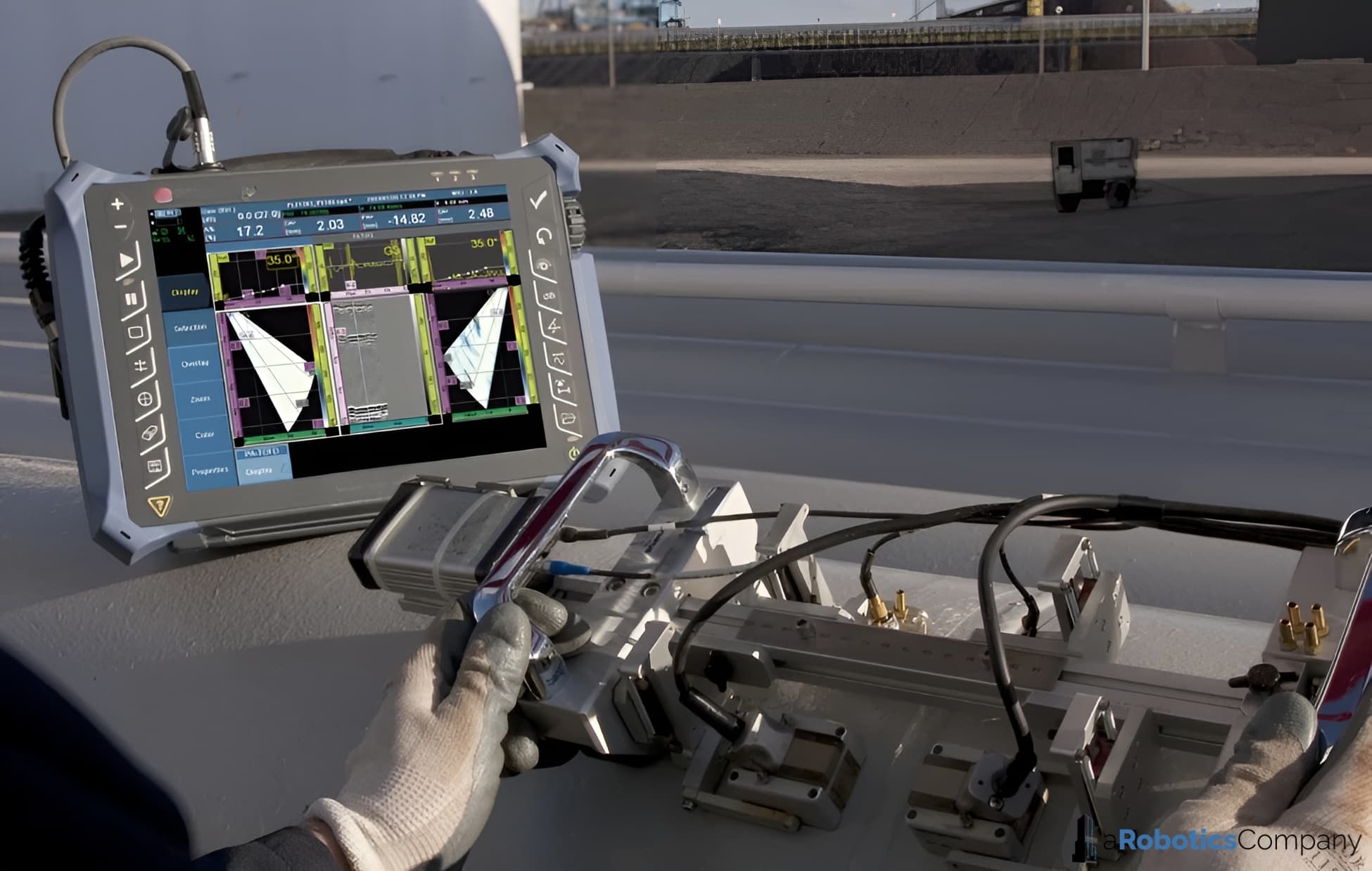

Ultrasonic Imaging is an advanced, non-destructive examination technology that is sensitive to small voids, honeycombing, and other structurally significant defects in large concrete structures. aRoboticsCompany's (aRC) Ultrasonic Imaging system is designed for a diverse set of use cases, offering automated ultrasound scanning of structures and assets with unparalleled clarity. Check out the robots that use the ultrasound system below:
NDTest-R
 →
Pave-R
 →
Ultrasound Wave Animation

Key Features

Advanced Imaging

Uses Multi-channel Ultrasonic Pulse Echo technology to provide detailed subsurface imaging.

Versatile Applications

From void/delamination detection to fiber concrete imaging and thickness measurement.

Varied Measurement Modes

Line scan, stripe scan, and grid scan to cater to different inspection requirements.

Remote Operation

Can be operated from a distance using hardline communication to reach difficult spaces.

Modular Design

Easily swapped with other aRC instruments like gas testing, radar scanning, and infrared.

Technical Specifications

Bandwidth

20 - 80 kHz.

Technology

Multi-channel Ultrasonic Pulse Echo.

Pulse Voltage (UPE)

±50 to ±150 V.

Receiver Gain

1 to 10,000 (0 to 80 dB).

Measuring Range

Up to 2 m / 6.6 ft.

Review Modes

A-scan, B-scan, C-scan, various heat maps, optional geotagging.

Battery Life

All day operation if integrated into an aRC robotic inspection system.

Applications

Structural Assessment

Detect voids, delaminations, and honeycombing in concrete and cracks in thick steel.

Maintenance And Repair

Ensure proper bonding and prevent concrete hits when drilling.

Safety Audits

Imaging closely spaced rebars for corrosion and other potential defects.

Hazard Analysis

Ensure integrity of nuclear and underwater assets made of steel and reinforced concrete.
