Magnetic Particle Testing

Magnetic Particle Testing

Learn More
 ↓
Fine, precise analysis of metal targets.
Used in critical applications where ultra fine resolution, accuracy, and precision are essential, Magnetic Particle Testing can be used to find anomalies in surface treatment and layered targets.
Example Client: Materials Testing Inc.

How Magnetic Particle Works

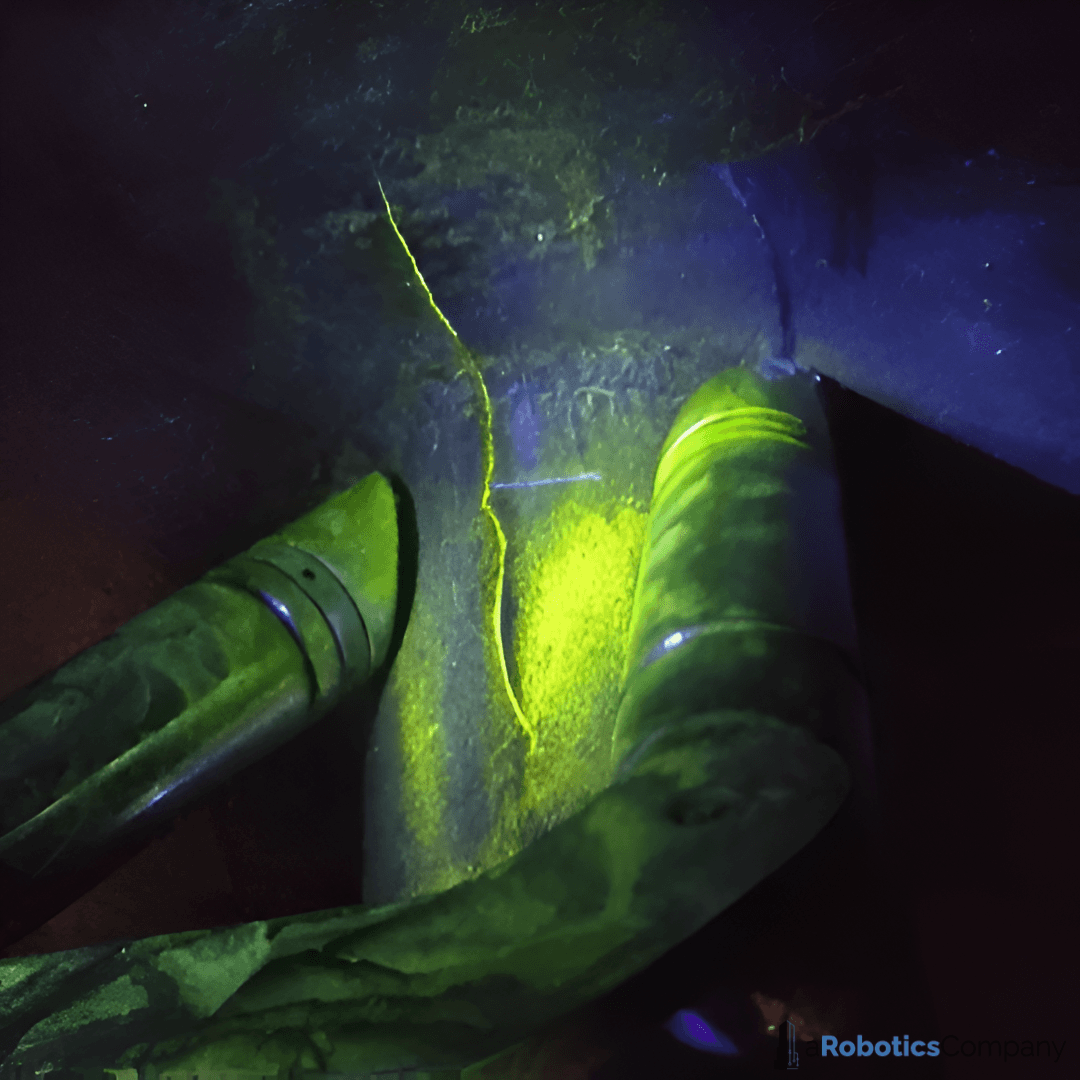

Many ferrous metals can be magnetized. Fluorescent magnetic shavings laid over the test area will align to magnetic fields propagating through the workpiece. Cracks and voids will interrupt this field and show in the orientation of magnetic shavings on the workpiece. Check out the robots that use the magnetic particle system below:
NDTest-R
 →
Pave-R
 →
Magnetic Particle Animation

Key Features

Flaw Detection

Finds surface and near-surface defects in ferromagnetic materials like cracks, seams, and laps.

Versatile Applications

Check weld integrity, castings, and forgings in construction.

Instantaneous Results

Displays findings immediately after inspection, facilitating timely decision-making.

Remote Operation

Operable from a distance using hardline communication to test hard-to-reach areas.

Modular Design

Seamlessly integrates with other aRC tools such as gas testing, radar scanning, and infrared.

Technical Specifications

Voltage

115 or 230 VAC Nominal.

Current

3.5 Amps (115V), 1.8 Amps (230V).

Frequency

50-60Hz.

Cord Length

8', 3-18 SOW.

Lift

10 pounds (4.6kg) minimum.

Capacity

0 to 11” (280mm).

Finish

Urethane rubber.

End Effector Weight

6.5 Pounds (3Kg)

Applications

Structural Integrity Checks

Validate structural integrity after construction, ensuring structures are free from cracks or flaws that can be detrimental under operational stress.

Maintenance and Repair

Confirm adequate penetration and adhesion on welds and joints per applicable standards.

Safety Audits

Utilize MPT for identifying potential structural vulnerabilities in critical assets.

Hazardous Assets

Precisely identify faults in nuclear and underwater areas.
