Fine, precise analysis of metal targets.
Used in critical applications where ultra fine resolution, accuracy, and precision are essential, Eddy Current probing can be used on structural metal elements on buildings, ships, and more.
Example Client: Materials Testing Inc.

How Eddy Current Works

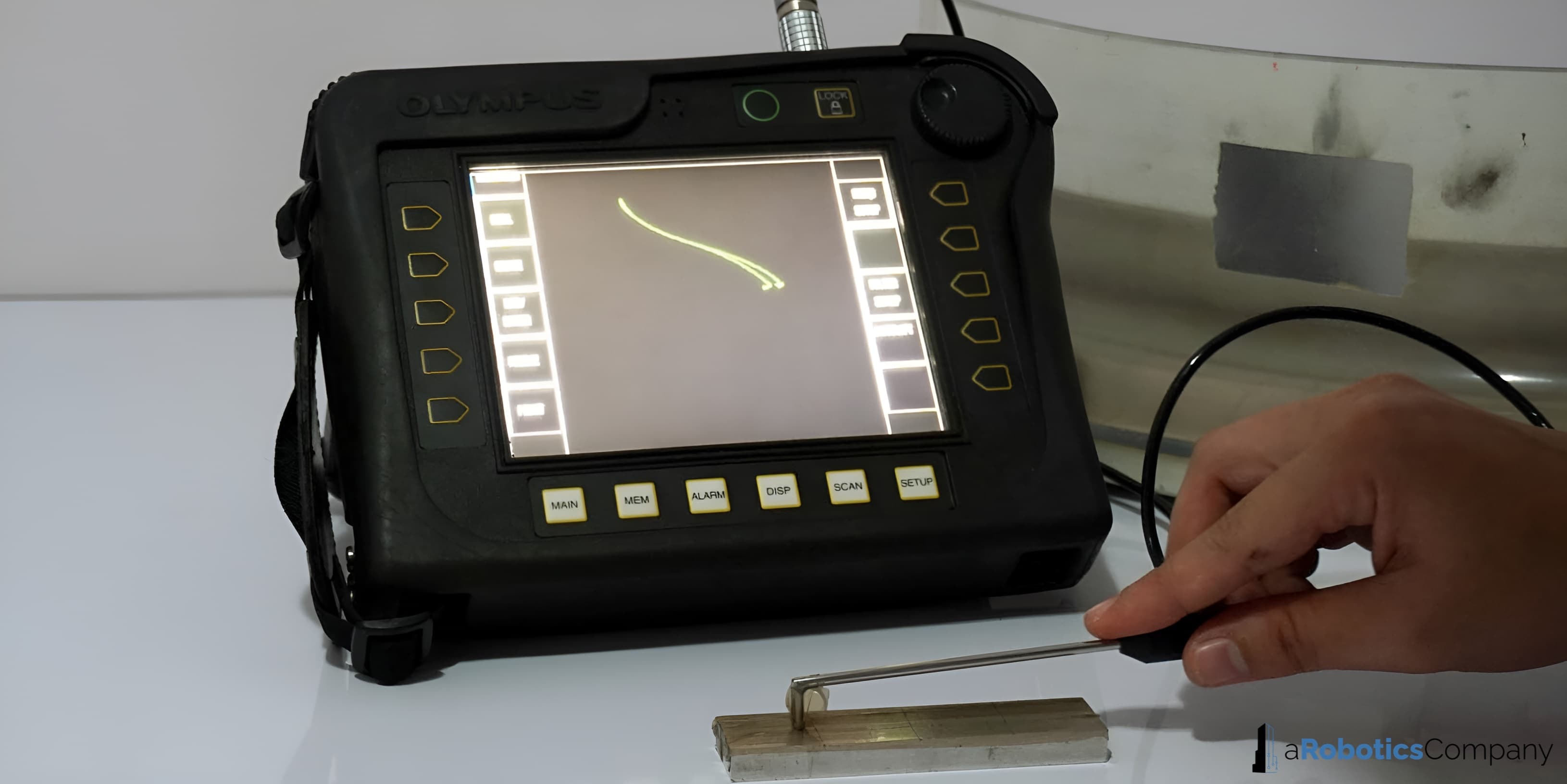

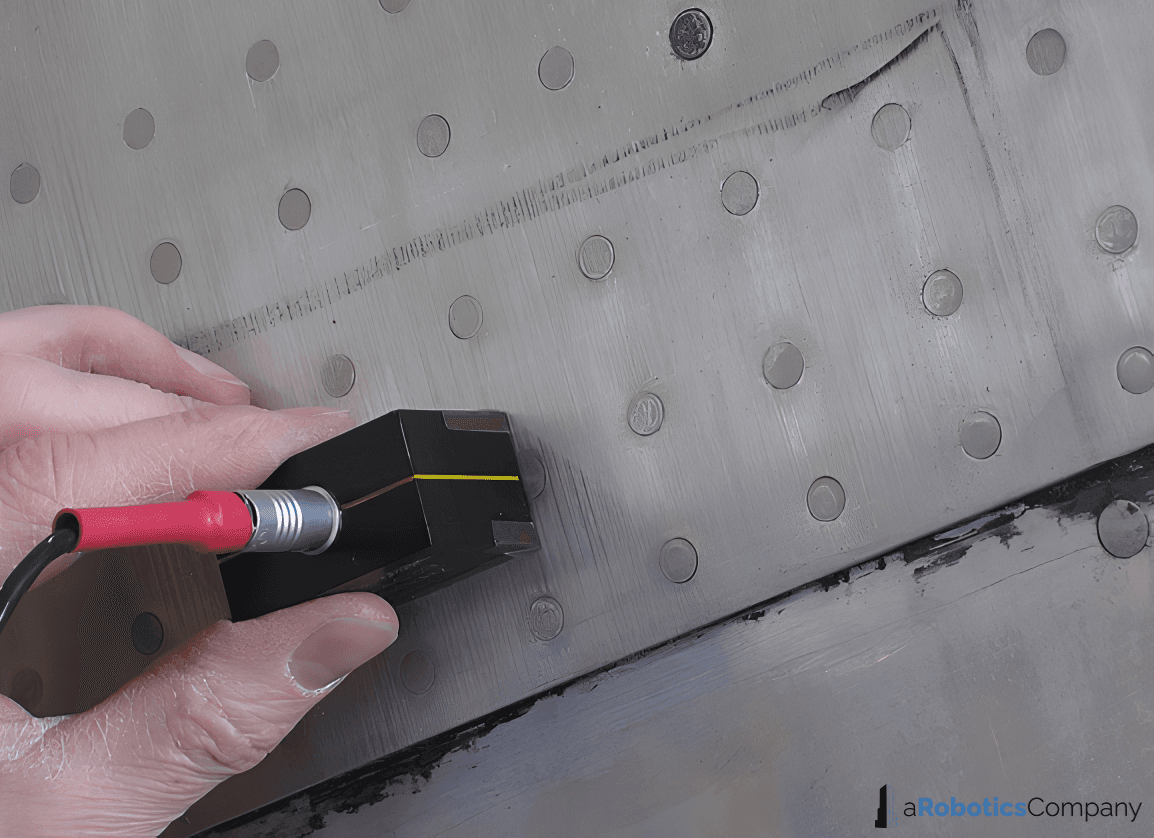

Eddy current probes measure subtle variations in back-induced currents in a specially shaped pickup coil to detect minute, near-surface irregularities in metal structures. Good targets for eddy current testing include bolt holes, welds, and other joints. Check out the robots that use the eddy current system below:
NDTest-R
 →
Pave-R
 →
Eddy Current Animation

Key Features

Precision Application

Uses advanced robotics to precisely and seamlessly execute eddy current probing.

Versatile Solutions

Widely applicable to most structures that have exposed metal components.

Remote Operation

Can be managed from a distance, allowing access to challenging areas and enhanced safety.

Modular Design

Integrates with other aRC tools, e.g. gas testing, radar scanning, and infrared.

Efficient Operation

Rapidly covers extensive areas, reducing downtime and increasing productivity.

Technical Specifications

Detection Tolerance

Detect <0.5mm cracks and fatigue stress in metals.

Access Tolerance

Access tight spaces with probes as small as 1/4 inch (6.35mm).

Frequency Range

From 100Hz to 100kHz for selectable penetration depth.

Automation

Automatic area coverage of large surfaces or weld lines.

Applications

Structural Inspection

Assess welds and critical joints quantitatively.

Pipeline Inspection

Find eroded sections of pipe and signs of premature failure.

Hazardous Assets

Probing can work underwater and in nuclear environments.
